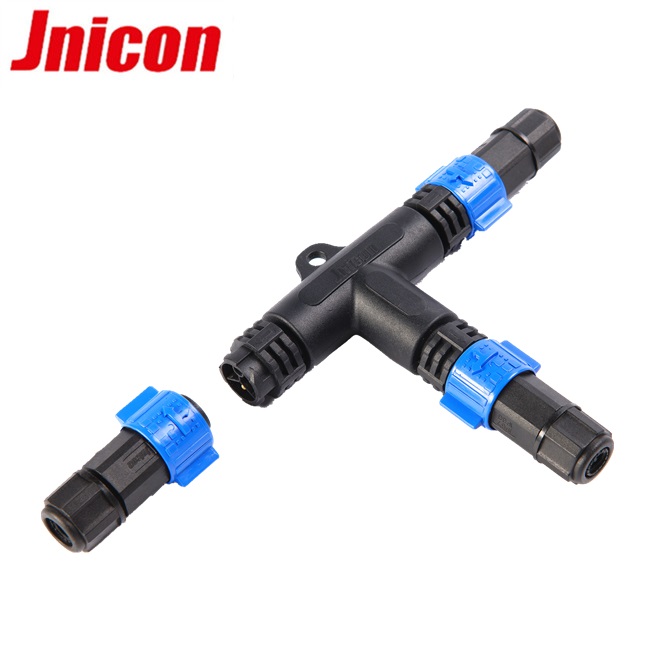

T Type Waterproof LED Light Connectors 20A 3 Pin 4 Pin For Electrical Wire Extension

Name: T Type Waterproof LED Light Connectors 20A 3 Pin 4 Pin For Electrical Wire Extension
Brand: Jnicon
Price: 1 USD

Brand Name : Jnicon

Model Number : M19

Certification : UL,TUV,CE,ROHS,CQC

Place of Origin : China

MOQ : 100 (10 Pairs of samples)

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5 working days

Packaging Details : 1.Plastic bag;2.Carton;3.As per customer's requirements

Product model : M19 waterproof T connector

Pole No. : 2 poles/3 poles/4 poles available

Connector type : T shaped waterproof connector

Weterproof level : IP67

Rated current : 20Amps

Warranty : 5 years

Contact Now

20A 3 Pin 4 Pin T Type Waterproof LED Connectors For Electrical Wire Extension

Product Description

IP67 waterproof level
T shaped waterproof connector
Flexiable connection to different cable length and spec
Push locking connection method
20A current rating

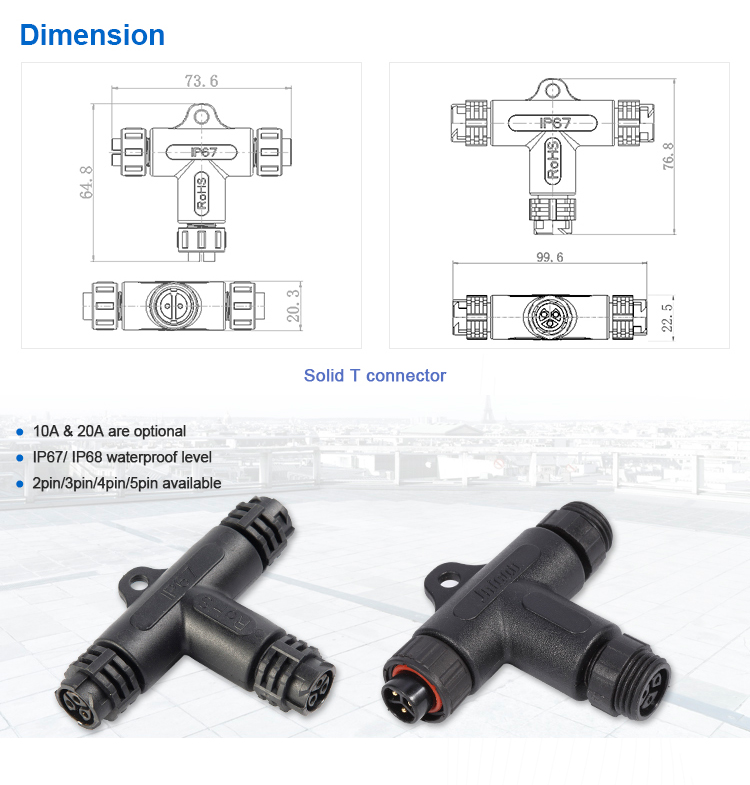

Technical Specification

Connector type :	T shaped waterproof connector
Connector color:	Black, blue, yellow
Waterproof level:	IP67/IP68
Cable specification:	20AWG-12AWG
Cable diameter range:	4.5mm-11mm
Contact diameter*No.	Φ1.0-Φ2.4
Rated current (A):	20A
Operating voltage (AC.V.rms):	500V
Connection method:	Push pull locking connector

T shaped waterproof connectors coudl be a flexiable option to different applications or fields, such as audio,vidio,stage lighting,landscape light etc. let's different cable length to connect together,easy to install and disassemble it.

Material

Shell and insulated parts:	High performance engineering plastics
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Better quality connectors could be used for a long time and no need to replace always, UL approved material and connectors to ensure your applications long working time and more stable.

Popular Applications

Stage equipment	The smart grid	LED lighting
Medical equipment	Battery charger	Automatic
Solar energy equipment	Ship equipment	Agriculture
Electric power equipment	Stage lighting equipment	Ebike/motorcycle

T Type Waterproof LED Light Connectors 20A 3 Pin 4 Pin For Electrical Wire Extension
