Push Locking High Current Outdoor Waterproof Connector Solid T Type M19

Name: Push Locking High Current Outdoor Waterproof Connector Solid T Type M19
Brand: Jnicon
Price: 1 USD

Brand Name : Jnicon

Model Number : M19

Certification : TUV , CE , CQC , ROHS

Place of Origin : Shenzhen China

MOQ : 100 (10 Pairs of samples)

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram ,Paypal

Supply Ability : 10000 / day

Delivery Time : 3 ~ 5 days

Packaging Details : 1.Plastic bag;2.Carton;3.As per customer's requirements

Product Name : T Shape Connector

Gender : Male and Female

Color : Black and Blue

Warranty : 5 Years

Protection Level : IP67

Material : Copper Alloy

Contact Now

Push Locking High Current Outdoor Waterproof Connector Solid T Type M19

Overview of Outdoor Waterproof Connectors

1. Pin : 2pin , 3pin , 4pin , even more

2. Connecting mode : push - locking

3. Application : suitable for high current LED light

4. Max current : 20 A

Datasheet / Specification of T Connector

Name	M19 push locking solid T
Pin / Pole	2	3	4
Current / Voltage	20A 300V		15A 300V
Withstanding Voltage	1500V		1000V
IP Level	IP67
Cable Specification	1.5mm2 - 2.5mm2
Diameter Range	φ4.5 - φ11
Operating Temperature	-40℃ - 105℃
Connecting mode	Push Locking
Shell , insulating parts	PA66

FAQ / Service

Q : I am interested in your connectors .

A : Yes , and you need to confirm the information as follow :

There are three way in the connector , which way is pin / pole , and the quantity .
Requirement of current and voltage
Requirement of cable specification
Requirement of pin

Q : Can you provide the free sample for quality test ?

A : Yes , we can support 1-3 set free sample for quality test , but you should pay for the shipping cost .

Q : How about the delivery time ?

A : In genaral , for sample , about 3 days ; for bulk order , about 5 days .

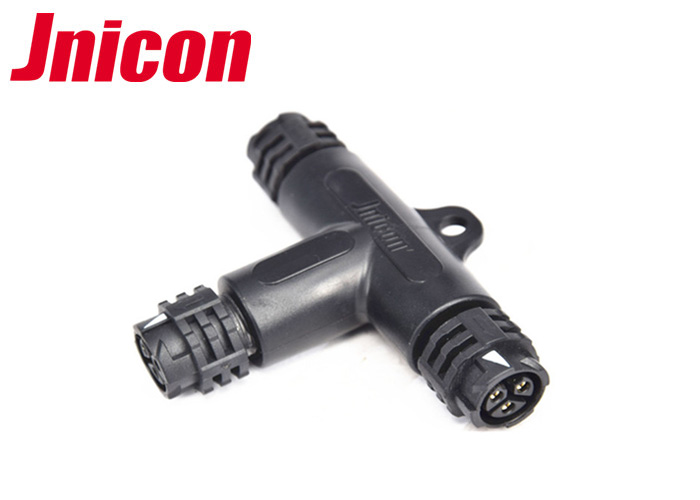

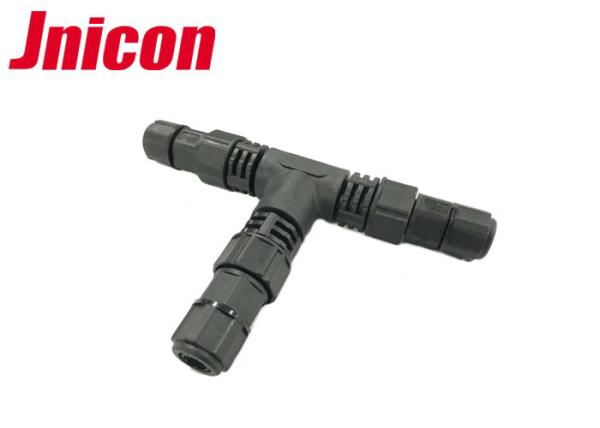

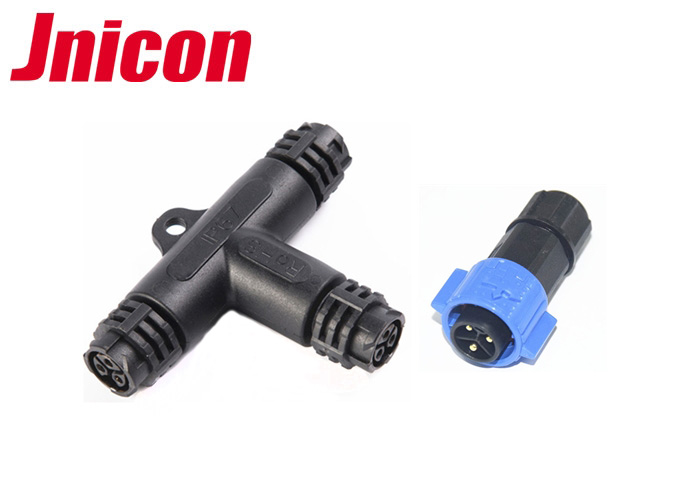

Product Show
