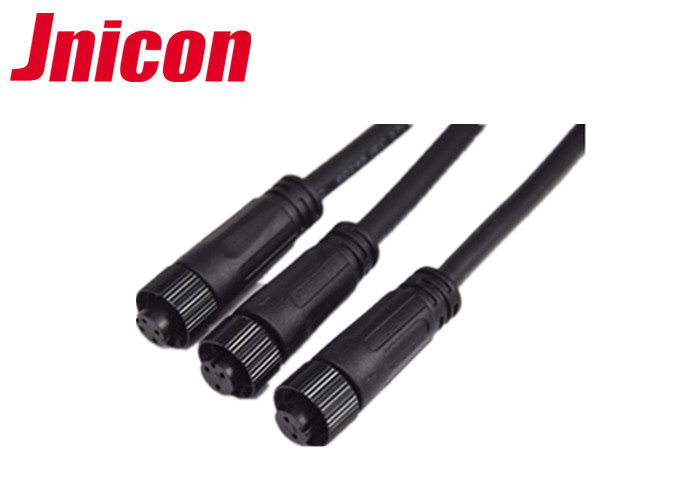

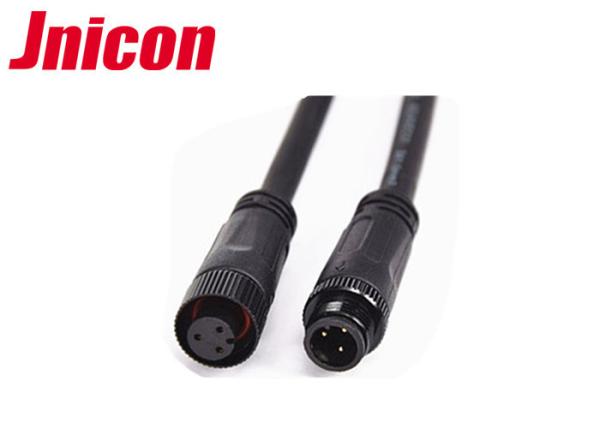

Jnicon M12 3 Pin Waterproof Wire Connector Electrical Cable Welding IP68
Main features of 3 Pin Waterproof wire Connector:
• the current/ voltage of waterproof wire connector are 10A/300V. the withstanding voltage is 1500V AC.
• Operate temperature: -45°C~+85°C
• M12 series 2-5 pins are available and for varies industrial demands. male ,female are available.
• High current application safety and stable wire. 1.5mm²~0.5mm² wire for 3 pin M12 series Push Locking waterproof male female connector
• M12 series have high waterproof degree--IP68.
The specifiction of 3 pins waterproof wire connector
| SPECIFICATION |
| Designation | 3 pin male female waterproof wire connector cable welding |
| Model No. | 57-100311-01 |
| Item | Specification |
| 1. Electrical characteristics |
| 1A | Contact Resistance | 10mΩ max. |
| 1B | Insulation Resistance | 10MΩ min. |
| 1C | Withstand Voltage | 1500V AC There shall be no breakdown. |
| 1D | Rating | 10A 300V |
| 2. Mechanical |
| 2A | Mating/Unmating force | Mating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N |
| 2B | Life test | Mating & Unmating 500 cycles |
| 3. Material |
| 3A | Contact Plating | gold plating |
| 3B | Contact material | Brass (C3604) |
| 3C | Housing material | PA66 |
| 4. Environmental |
| 4A | Flammability | | UL 94V-0 |
| 4B | Operation temperature range: | -30℃~+80℃ |
| 4C | Preservative temperature range: | -40℃~+85℃ |
More detail:
• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
• Vibration resistance,impact resistance,stretching resistance.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively.
Application
► M16 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,landscape lights,underwater lights, equipments etc.
► It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
► OEM/ODM are accepted. cable length can customized.
► Outdoor waterproof connector have IP67 waterproof protection rating, it works reliably in door, outdoor.
