High Current Waterproof Data Connector , 12 Pin Waterproof Connector Plug Lock Cable Welding

Brand Name : Jnicon

Model Number : Waterproof Data Connector

Certification : TUV, UL, 3C, CE, ROHS, ISO90001

Place of Origin : China

MOQ : 100 (10 Pairs of samples)

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pair/day

Delivery Time : 3-5 days

Packaging Details : 1.plastic bag 2.carton 3.As per customer's requirement

product name : 12 Pin Plug With Socket Waterproof data Connector

current rating : 30 A+5A

cable gauge : 24-12 AWG

contact diameter : ∅ 2.7 mm+∅ 1.0mm

material of copper alloy : copper alloy with gold plate

operation temperature : -40℃~80℃

Contact Now

12(3+9) Pin Plug With Socket Waterproof data Connector Plug Lock Cable Welding

More details of 12(3+9) Pin Plug With Socket Waterproof data Connector:

• the current/ voltage of waterproof data connector are 30A+5A/300V+60V. the withstanding voltage is 1500V AC.
• High current application safety and stable wire. 24-12 AWG wire for 3+9 pin waterproof data connector .
• 2-32 pins are available and for varies industrial demands.
• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
• Plug/unplug locking style and push locking,easy to assemble.
gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
• The waterproof rating is IP67(plug locking).

The specifiction of 12(3+9) pin waterproof data connector:

SPECIFICATION
Designation12(3+9) pin male female waterproof date connector cable welding
Model No.51-109311-01
ItemSpecification
1. Electrical characteristics
1AContact Resistance10mΩ max.
1BInsulation Resistance10MΩ min.
1CWithstand Voltage1500V AC There shall be no breakdown.
1DRating30A+5A 300V
2. Mechanical
2AMating/Unmating forceMating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N
2BLife testMating & Unmating 500 cycles
3. Material
3AContact Plating1u" gold plating
3BContact materialBrass (C3604)
3CHousing materialPA66
4. Environmental
4AFlammability UL 94V-0
4BOperation temperature range:-30℃~+80℃
4CPreservative temperature range:-40℃~+85℃


More Detail:

Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.

12(3+9) pin waterproof data connectors could be widely used in indoor & outdoor led lighting, LED screen, audio visual equipment, industrial and testing equipment, electricl power connection, landscape lights,underwater lights,equipments etc.

It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

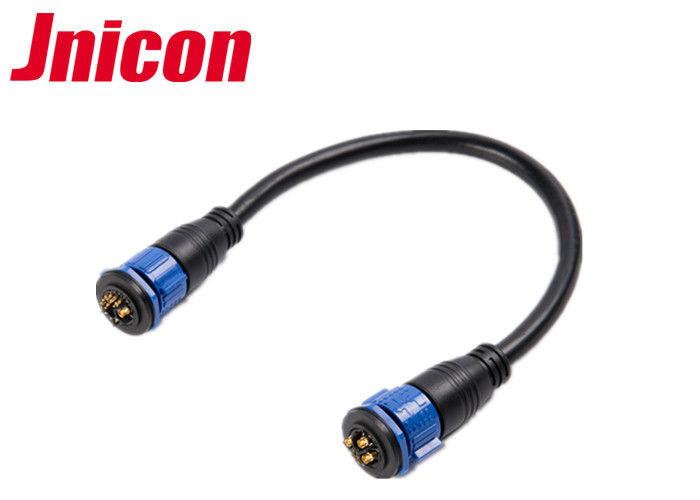

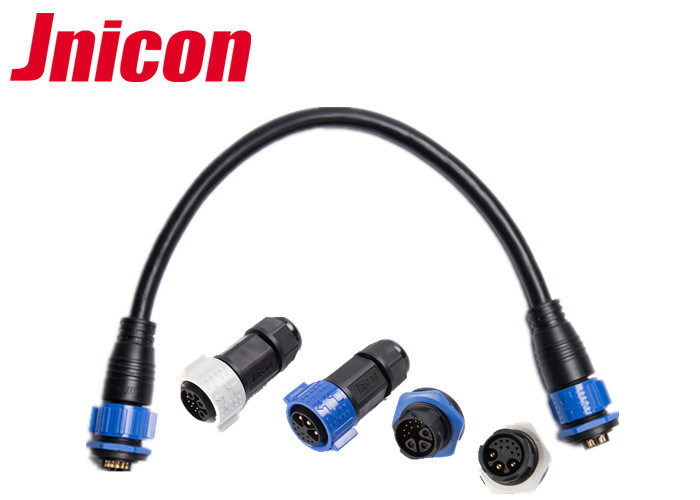

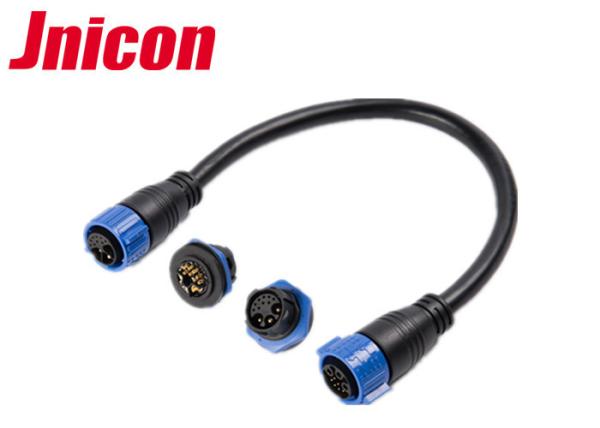

Product detail picture

High Current Waterproof Data Connector , 12 Pin Waterproof Connector Plug Lock Cable Welding

High Current Waterproof Data Connector , 12 Pin Waterproof Connector Plug Lock Cable Welding
